Sole Mio

Sole Mio is a beach club in Dubai run by @teovito. I designed and built their booking + payments platform from scratch — an ecommerce checkout and admin system to handle bookings, spot selection, and payments for the club.

This is the full build-in-public archive from June 2024 through launch in early 2025 — the tech stack decisions, the seat/spot selector, Stripe integration, the production setup, and the edge cases that made it launch-ready.

Kumail
Kumail @kumailht · Jun 24, 2024

Really excited to be embarking on a new build with @teovito! It's an ecommerce checkout + admin system to facilitate bookings for the club. This one's a big project, which will probably take several weeks, and I'll share interesting technical details as the build progresses!

Sole Mio build update
Kumail
Kumail @kumailht · Jun 24, 2024

The way I'm approaching the build is like a painter. I'm going to build this in layers. Lay on the first coat of paint, let it dry, then another, and another. The first step, is to get as much of the app skeleton in place. The tech stack I've..

Kumail
Kumail @kumailht · Jun 24, 2024

The tech stack I've chosen for this app is Express.js. The reason is simple, Express is the toyota corolla of javascript frameworks. No one will compliment you on it, but if you want to go to the moon and back (literally), you can trust a corolla to do the job.

Kumail
Kumail @kumailht · Jun 24, 2024

As for design, we have a wireframe of the app, but we'll spend a bit more time on designing the checkout experience as part of the build process. I'll be sharing more around this as it happens!

Kumail
Kumail @kumailht · Jun 24, 2024

This is going to be an exciting build. I got the clients permission to share some of the progress in public, so give me a follow if you want to see how this turns out :)

Kumail
Kumail @kumailht · Jul 3, 2024

Which also makes design fun! This project is a longer time-frame project I'm designing+building for @teovito I love working with founders in helping solve real problems with code and design. And with permission, I'll be sharing how this project goes, so hit that follow :)

Kumail
Kumail @kumailht · Jul 12, 2024

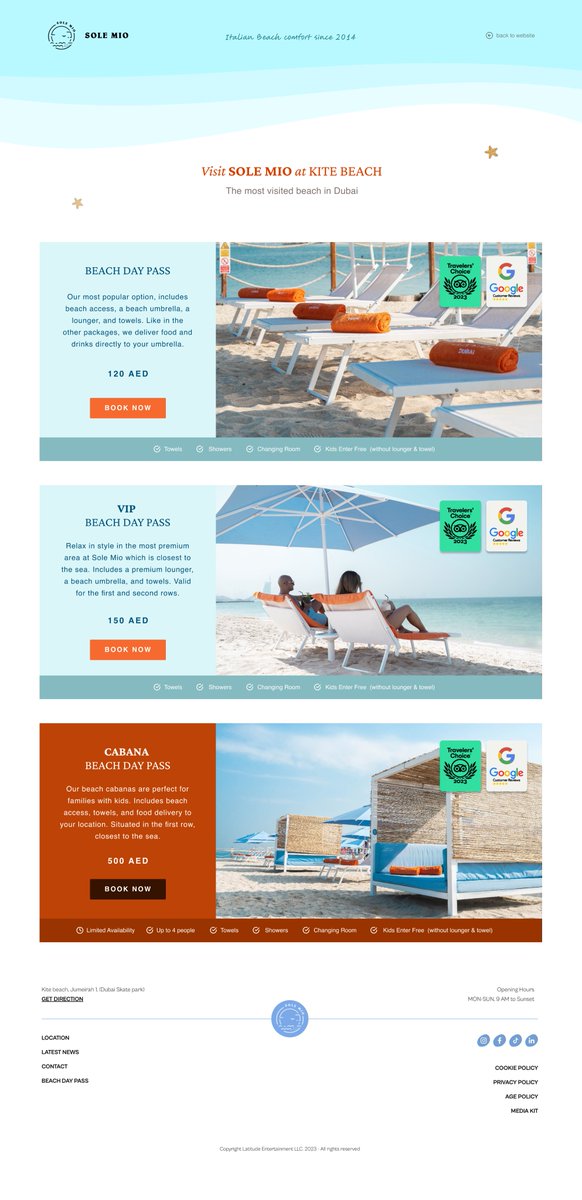

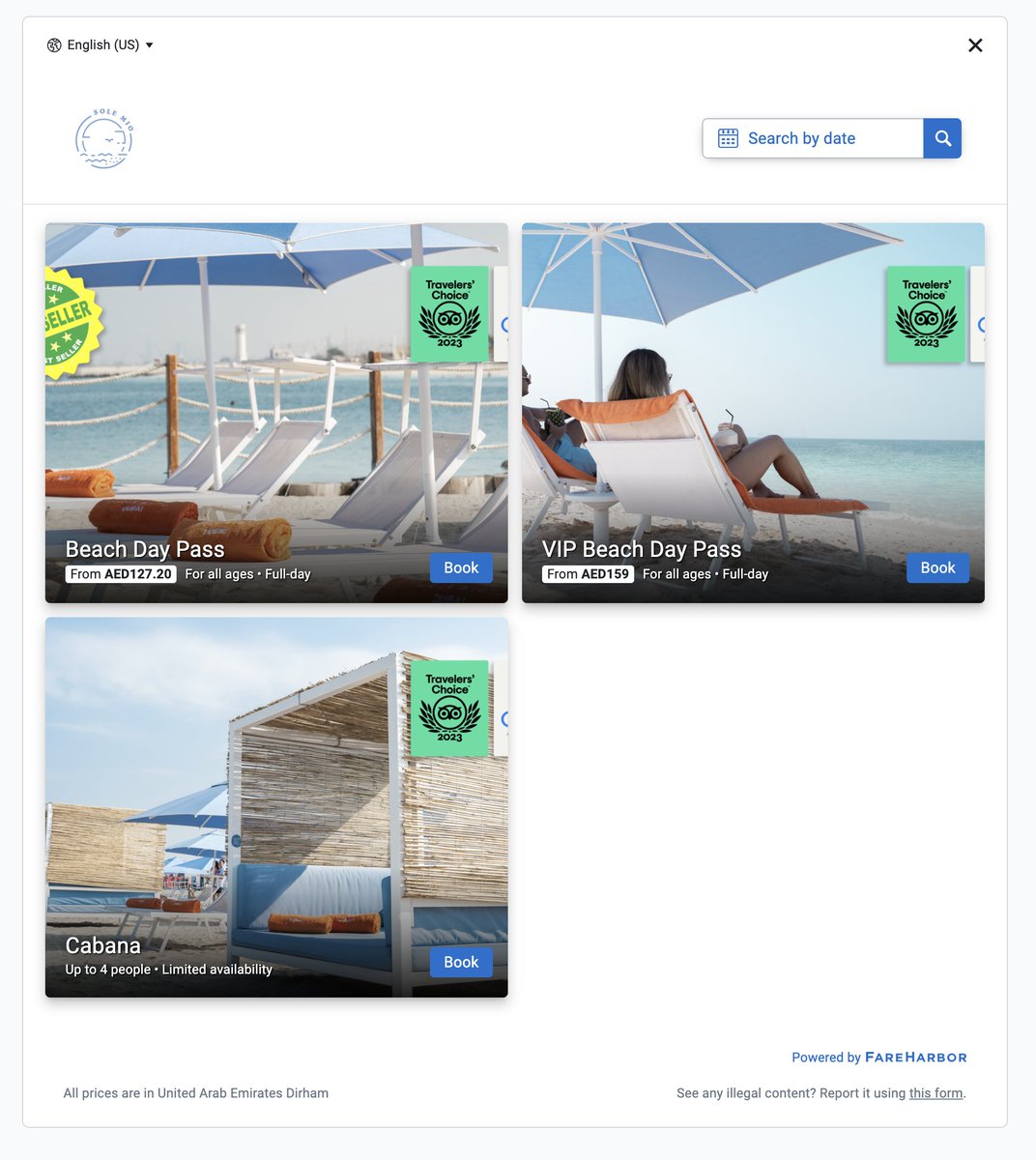

Before → After I've been working on the new booking system for Sole Mio, a really cool beach club in Dubai run by @teovito There are several customer facing pages, and one of the most important ones was the product listing page. The goal was to ..

Sole Mio build update Sole Mio build update
Kumail
Kumail @kumailht · Jul 12, 2024

..give it a fun beach-y vibe, and freshen up the user experience. This is one of the options I came up with and the client loved the direction, so we're running with it! I personally love it too, especially the header ❤️

Kumail
Kumail @kumailht · Jul 12, 2024

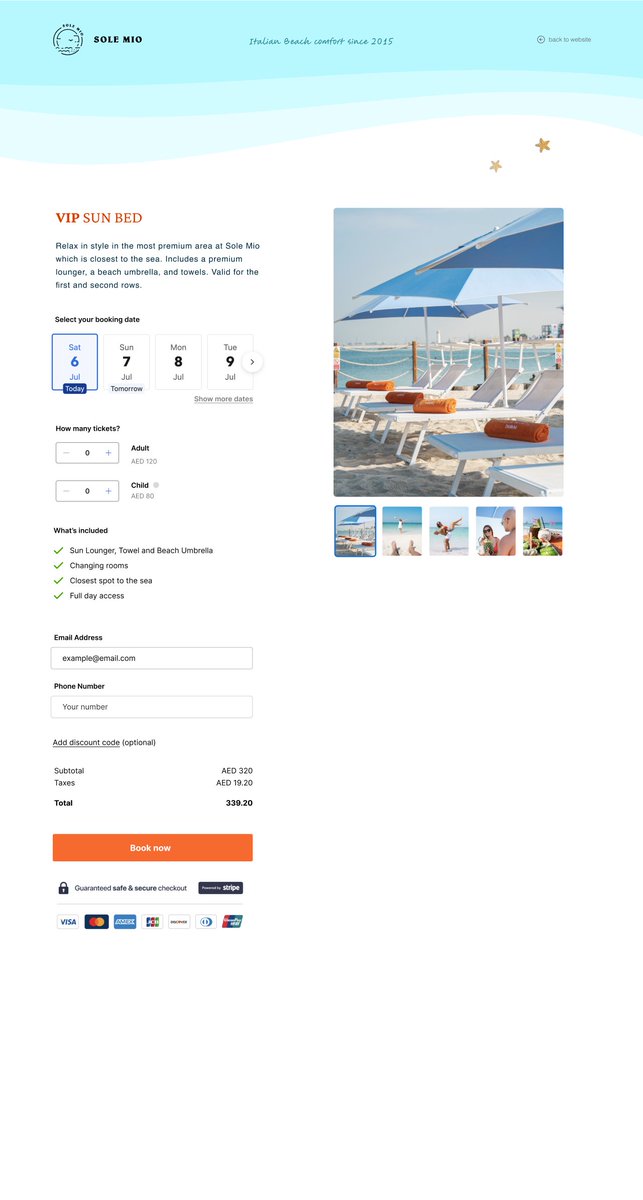

We also worked on a new booking page which should provide customers with a better experience. Our main goal here was to keep things as simple as possible to ensure high conversion rates. It's still got a fresh look, easy date selector and straight to the point experience.

Sole Mio build update
Kumail
Kumail @kumailht · Jul 12, 2024

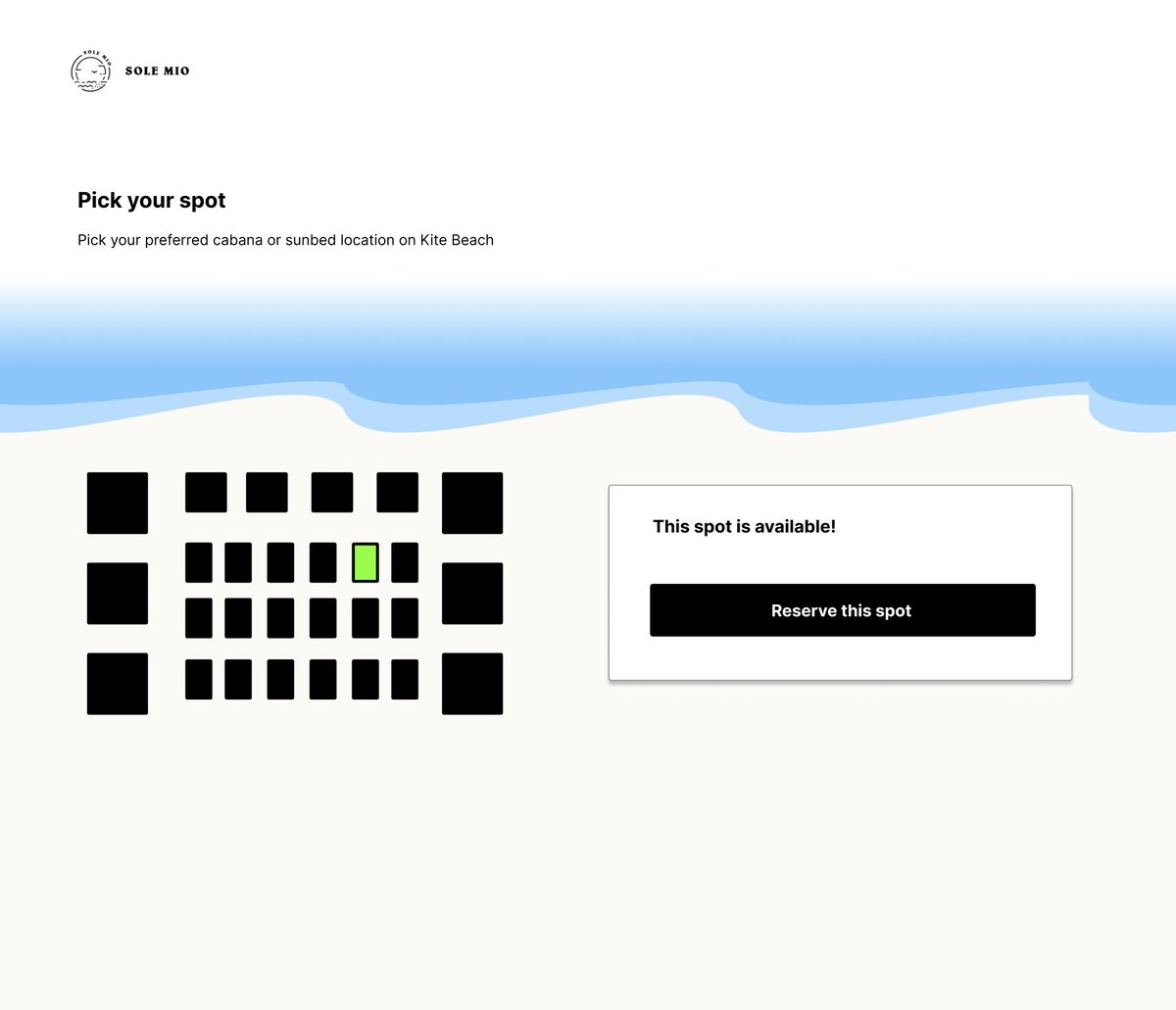

Next up, I'm designing the seat selector, which kinda works like an airline booking system. Here is the wireframe, which looks ugly, so we gotta make it look right! I'll be sharing how this turns out in a few days :)

Sole Mio build update
Kumail
Kumail @kumailht · Aug 15, 2024

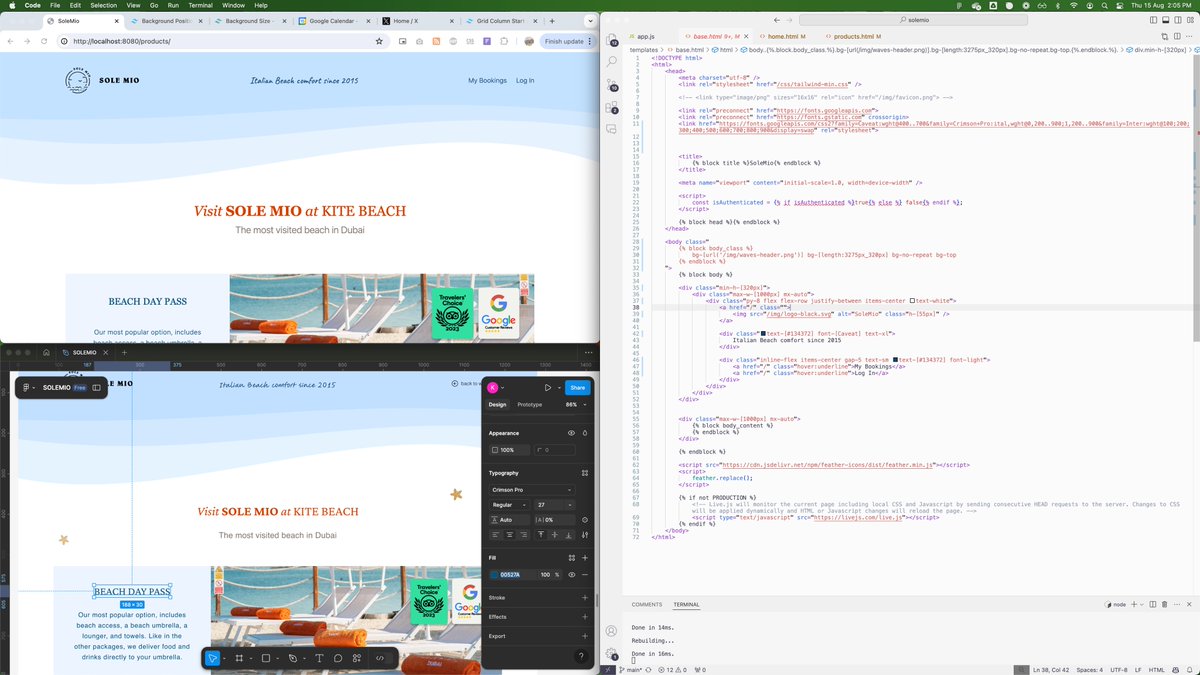

I love working on my iMac because I can do this While I'm working on the SoleMio frontend, I can make edits, reference my Figma designs and see live updates to the browser. This feedback loop I think is especially important for frontend work!

Sole Mio build update
Kumail
Kumail @kumailht · Aug 21, 2024

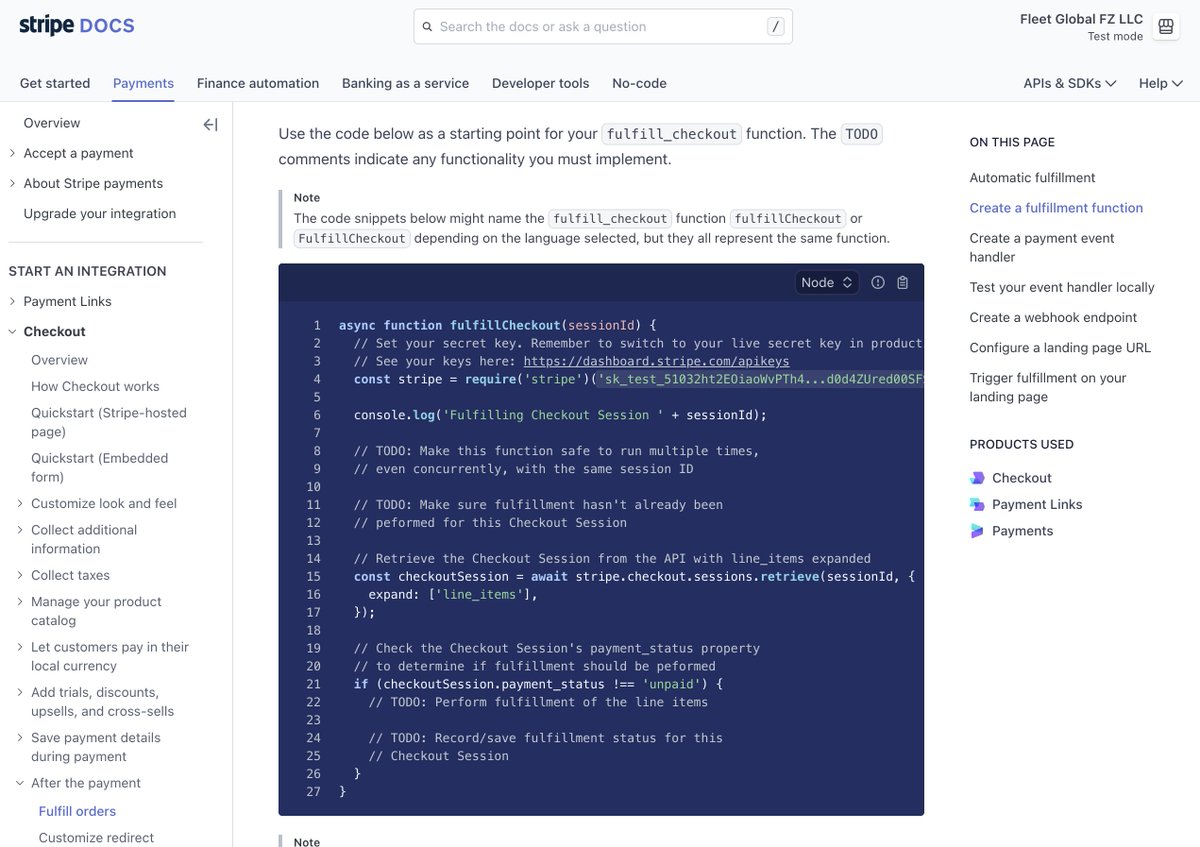

I've been integrating payments for Sole Mio and I'm actually enjoying working with Stripe. The documentation is so well laid out, it's almost a pleasant experience. It's crazy because working with payments historically has been an absolute pain.

Sole Mio build update
Kumail
Kumail @kumailht · Aug 24, 2024

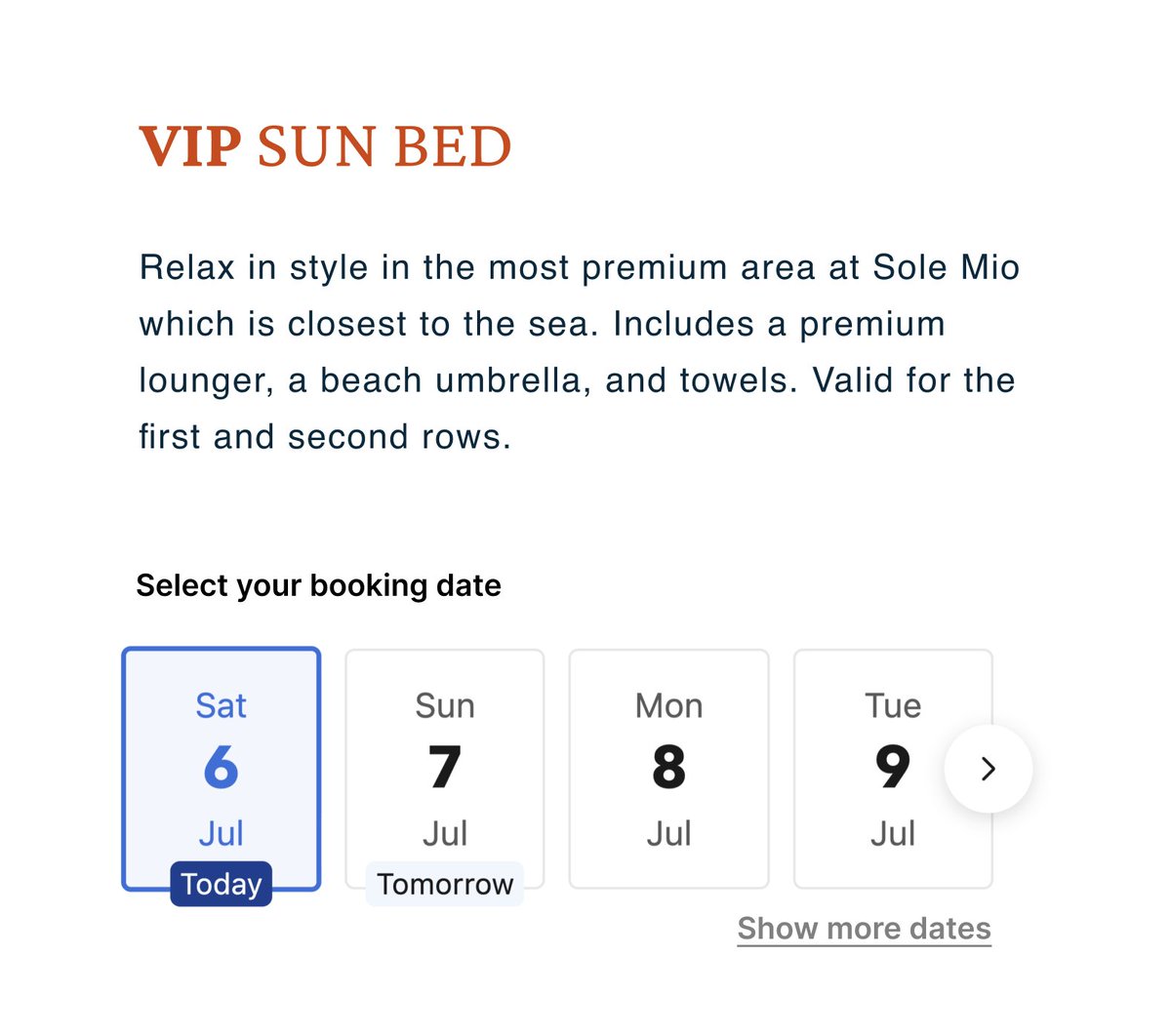

Working on this little date picker today It's always stuff like this that takes the craziest attention to detail and time commitment to get right So many ways to break UI of this sort I'm goin in' boys.

Sole Mio build update
Kumail
Kumail @kumailht · Aug 29, 2024

It's starting to get real.. The booking page now works and initiates a Stripe session with the correct tickets, booking date, customer info and discount code. Now I've gotta make this work on mobile 🫠

Kumail
Kumail @kumailht · Sep 27, 2024

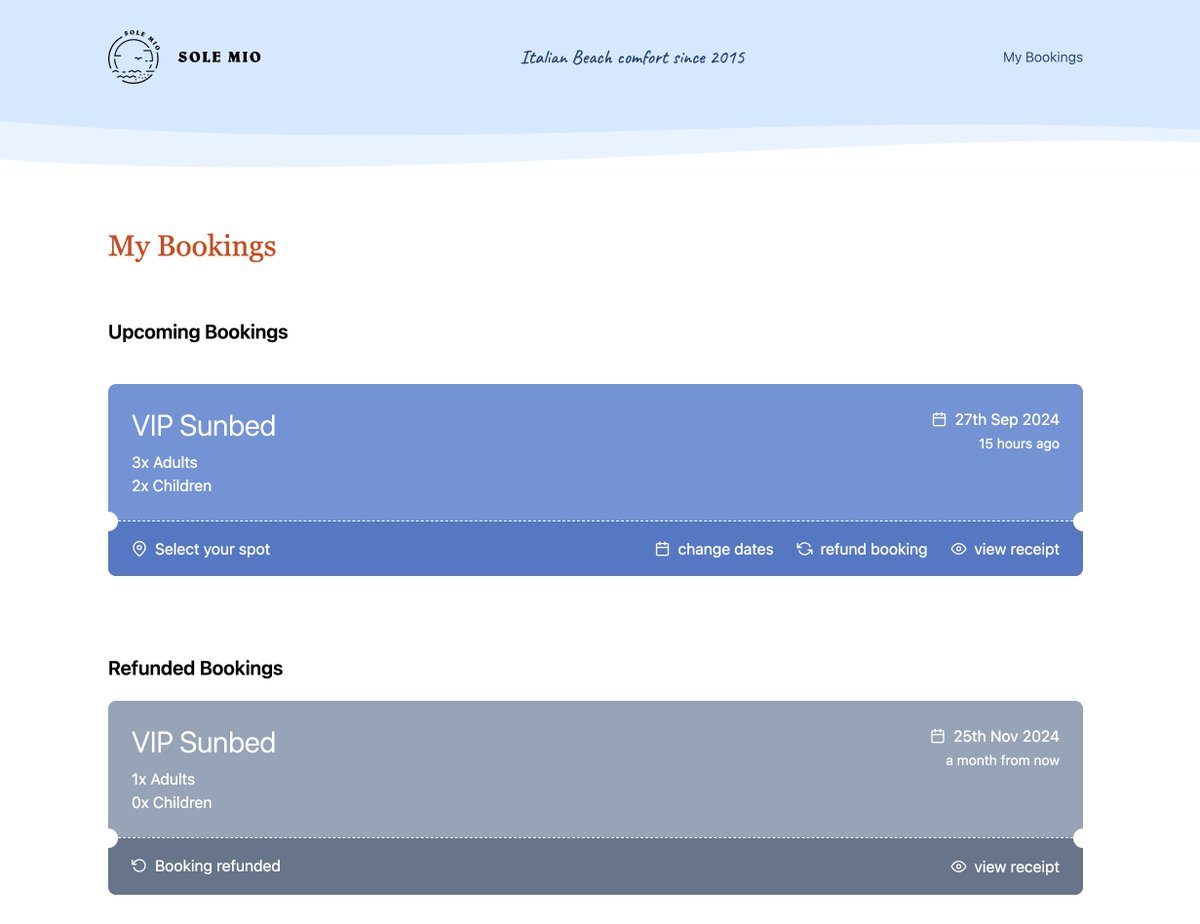

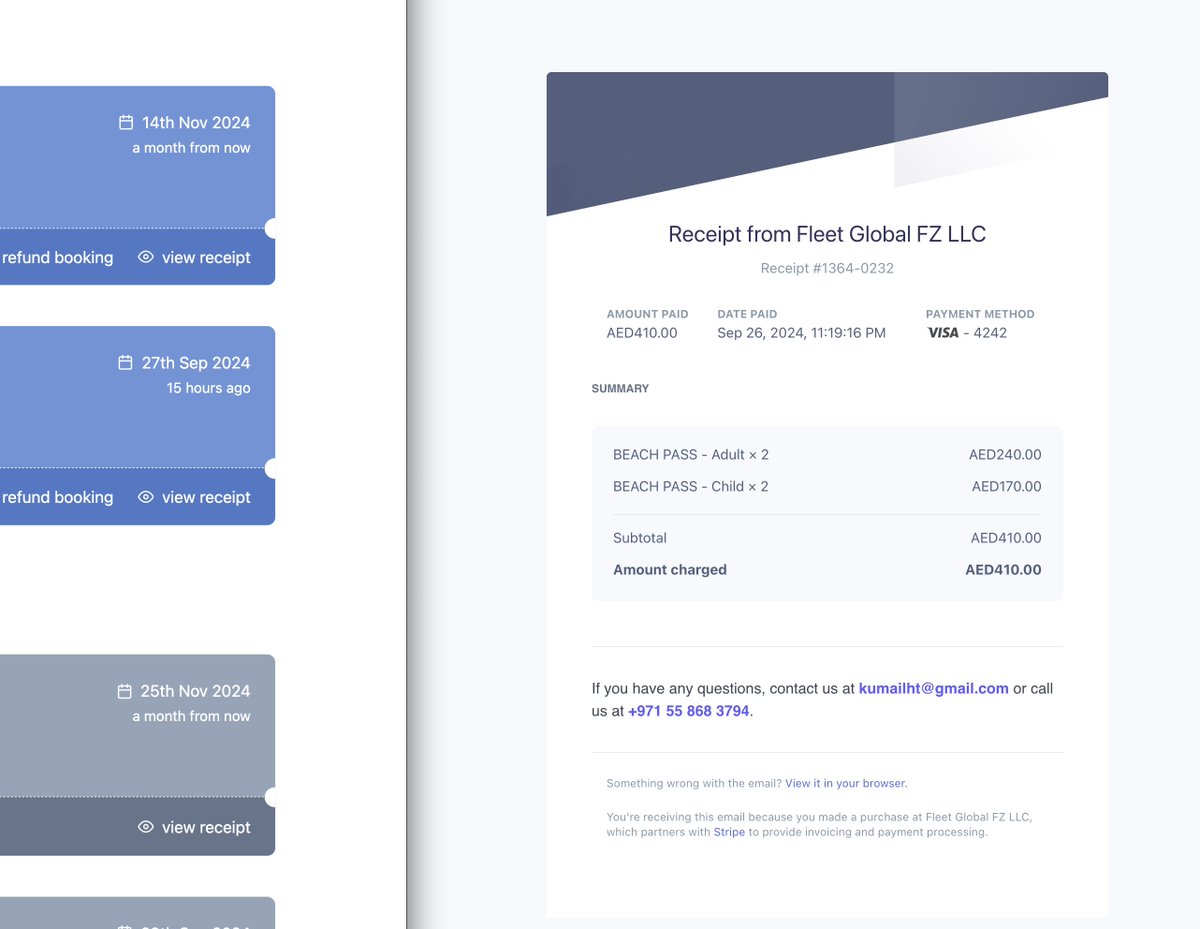

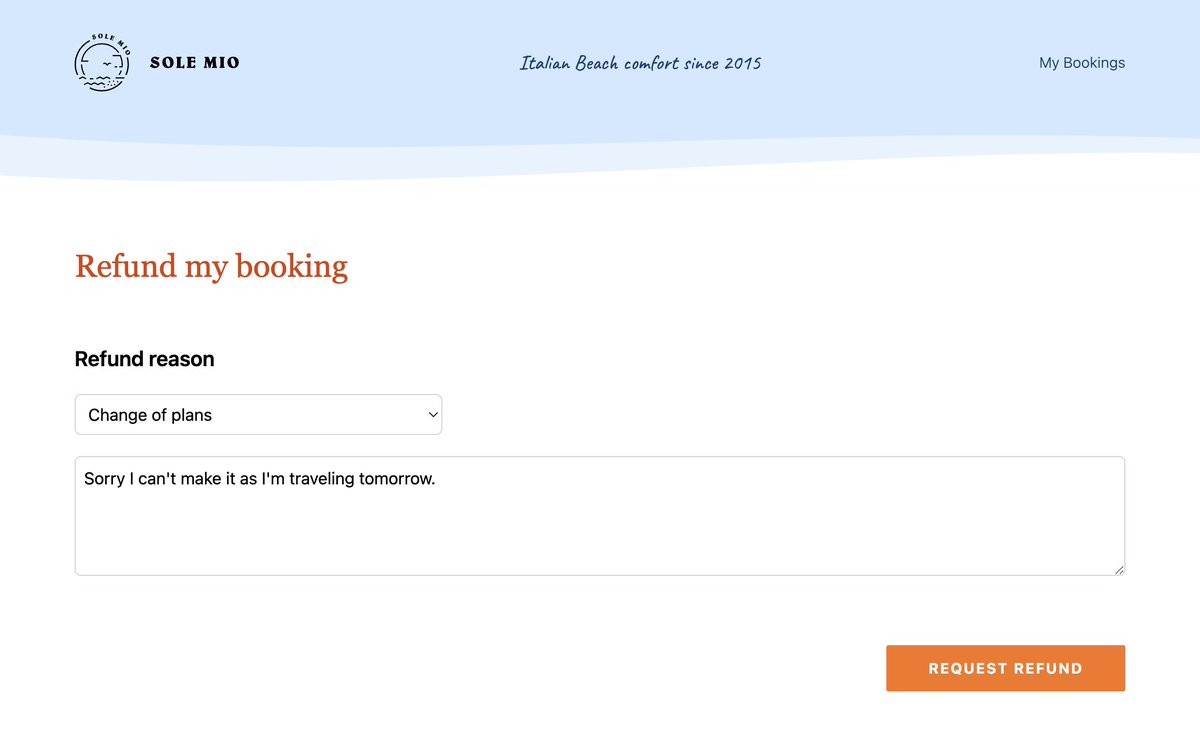

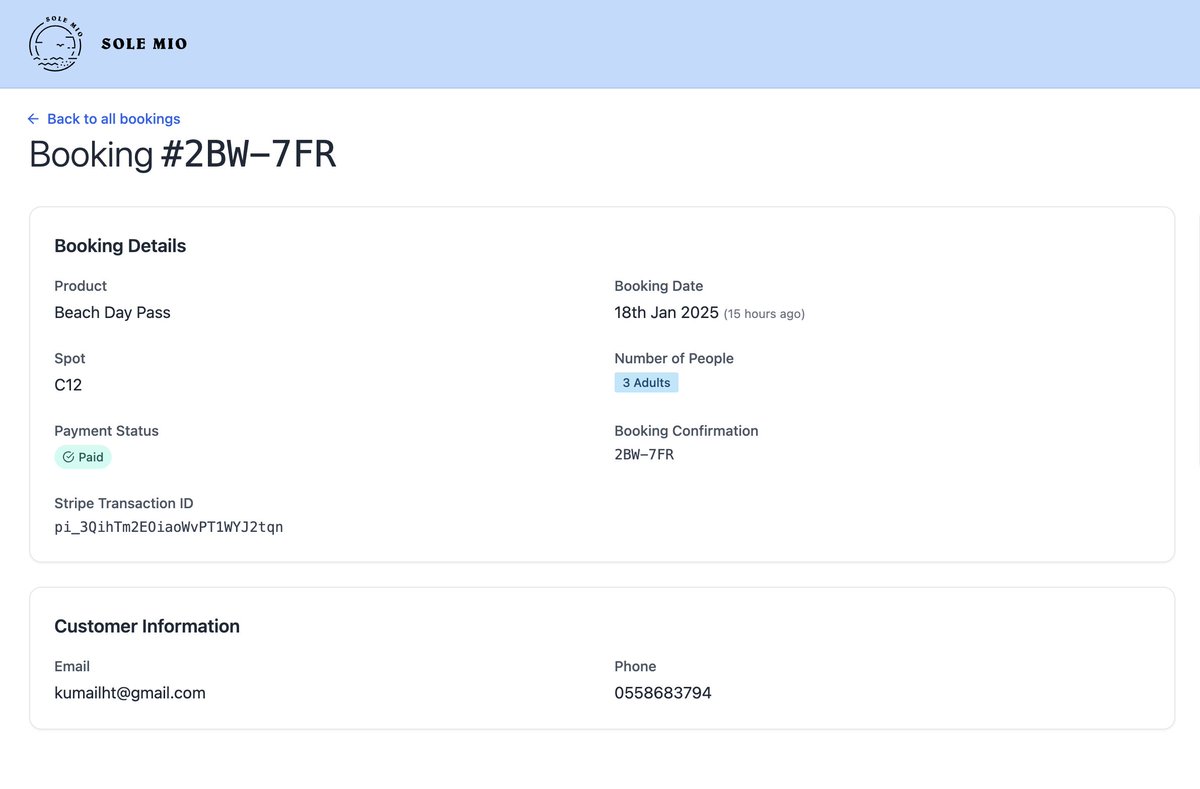

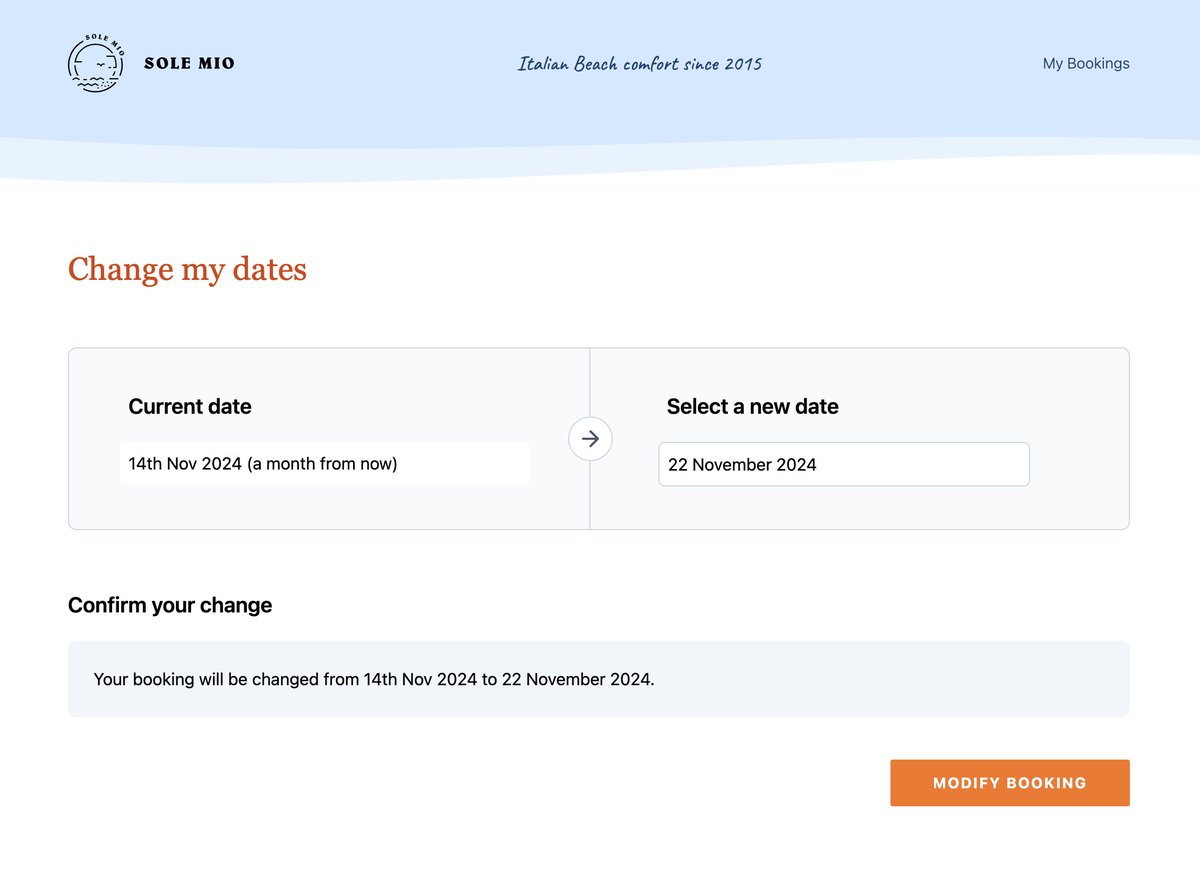

I've been building a booking/payments system for Sole Mio, a beach club in Dubai Here's a quick update on how things are progressing. I added some much needed core functionality. Customers can now view their receipt, refund their booking or modify the booking dates. cont..

Sole Mio build update Sole Mio build update Sole Mio build update Sole Mio build update
Kumail
Kumail @kumailht · Sep 27, 2024

This required thinking through my models/data structures, integrating with more Stripe endpoints and developing new user flows. The project is now moving quick. The user flows are starting to look more complete by the day. Next step, the admin system. Stay tuned!

Sole Mio build update Sole Mio build update
Kumail
Kumail @kumailht · Oct 1, 2024

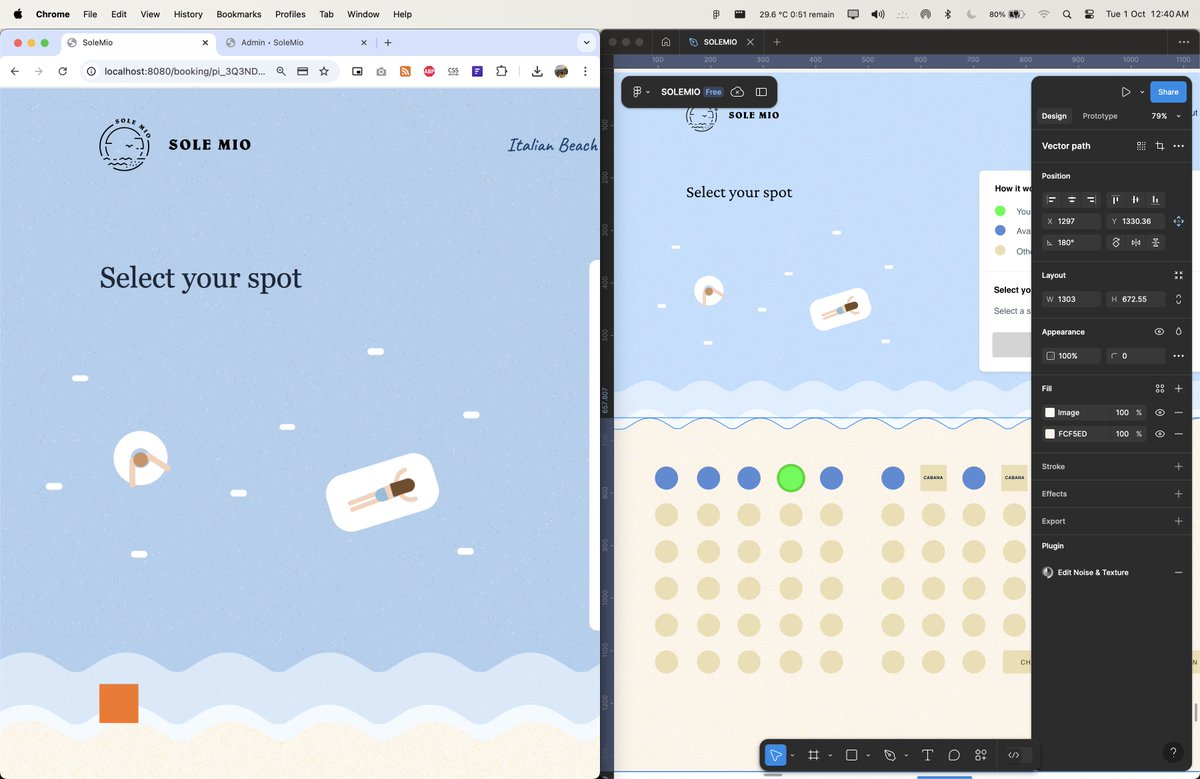

Love building out pages like this.. they're super intricate and require an insane attention to detail. Getting the ocean pattern to repeat horizontally, or making sure the illustrations respond to varying browser widths, and ofcourse the seat selection stuff. This is fun.

Sole Mio build update
Kumail
Kumail @kumailht · Oct 4, 2024

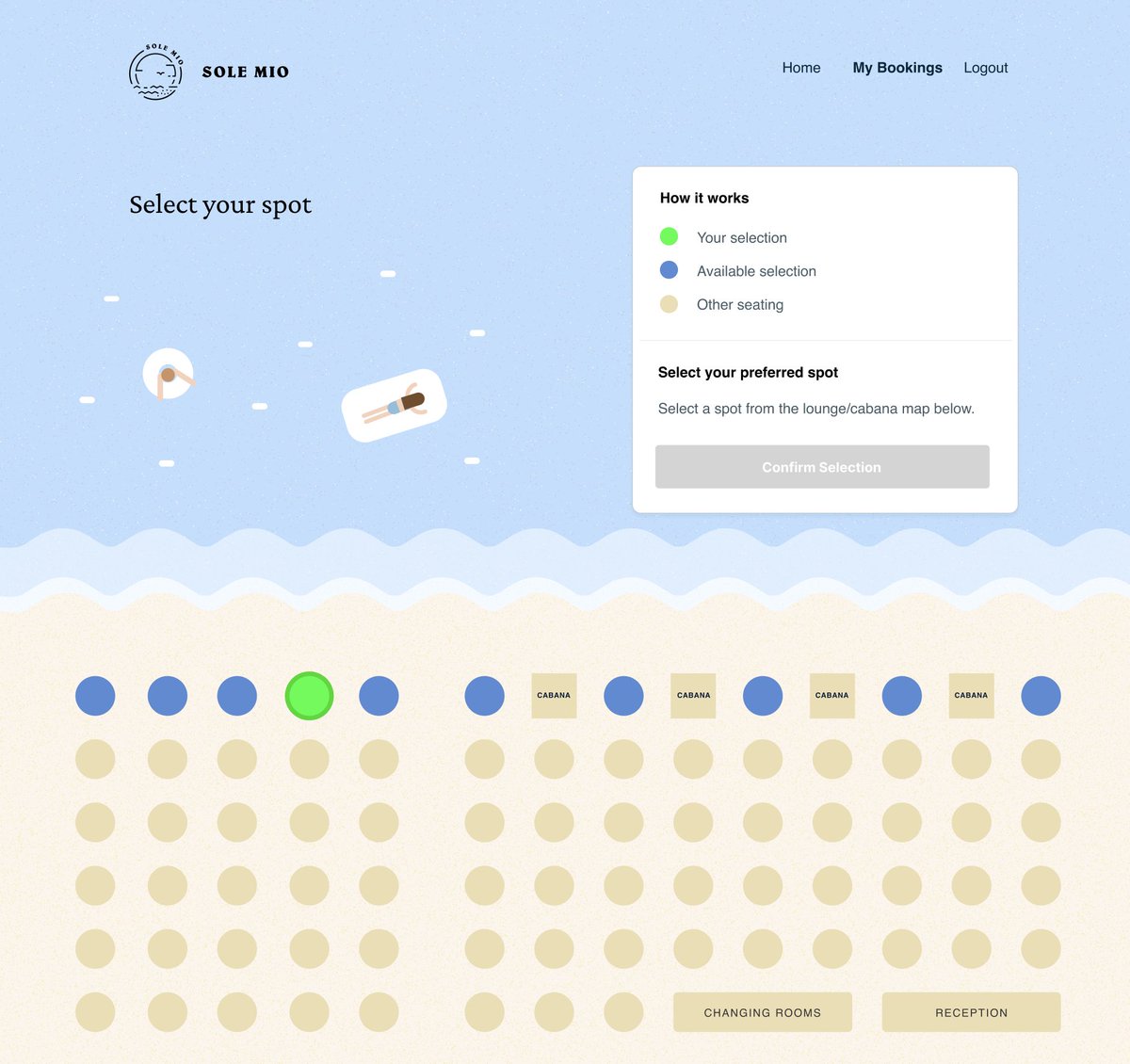

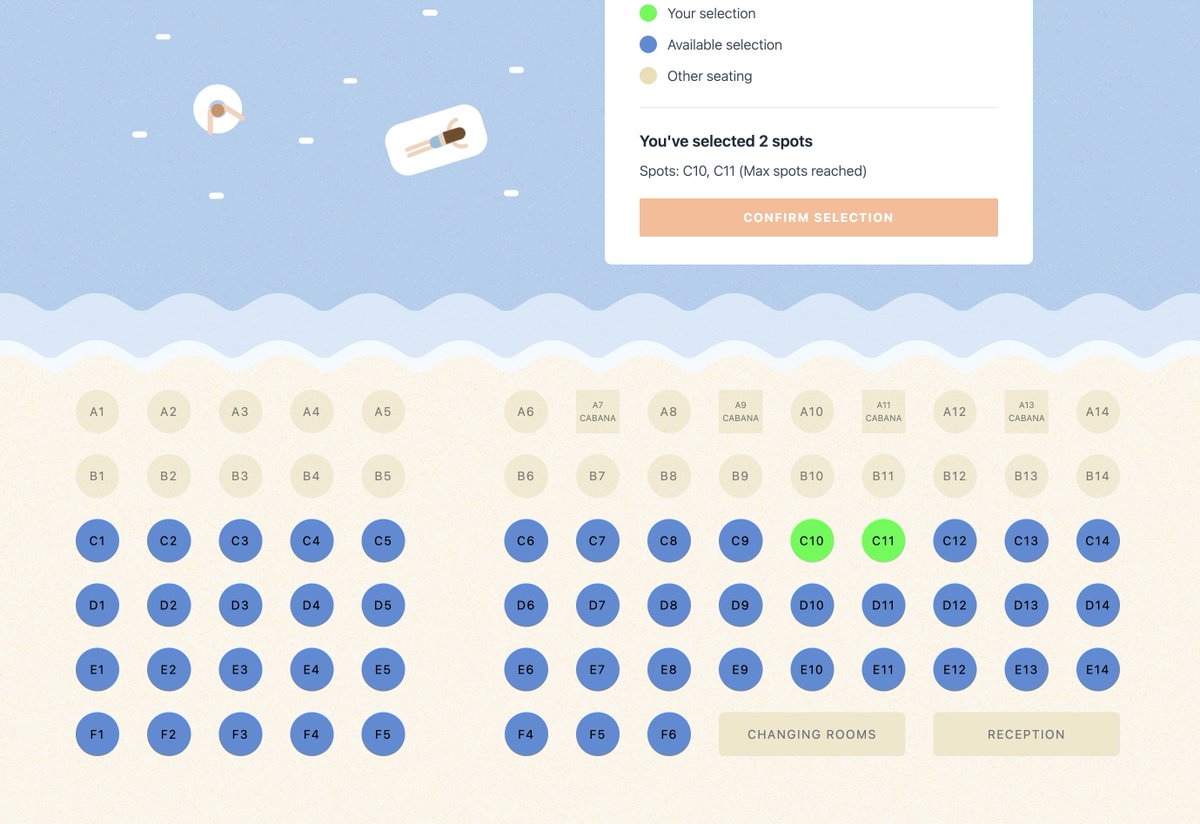

Got the spot selector working on the Sole Mio project This was tricker that I first thought. Especially dealing with constraints like product types, availability, max-spots, etc And having to sync that up with the database/backend Still happy with the progress so far!

Kumail
Kumail @kumailht · Oct 7, 2024

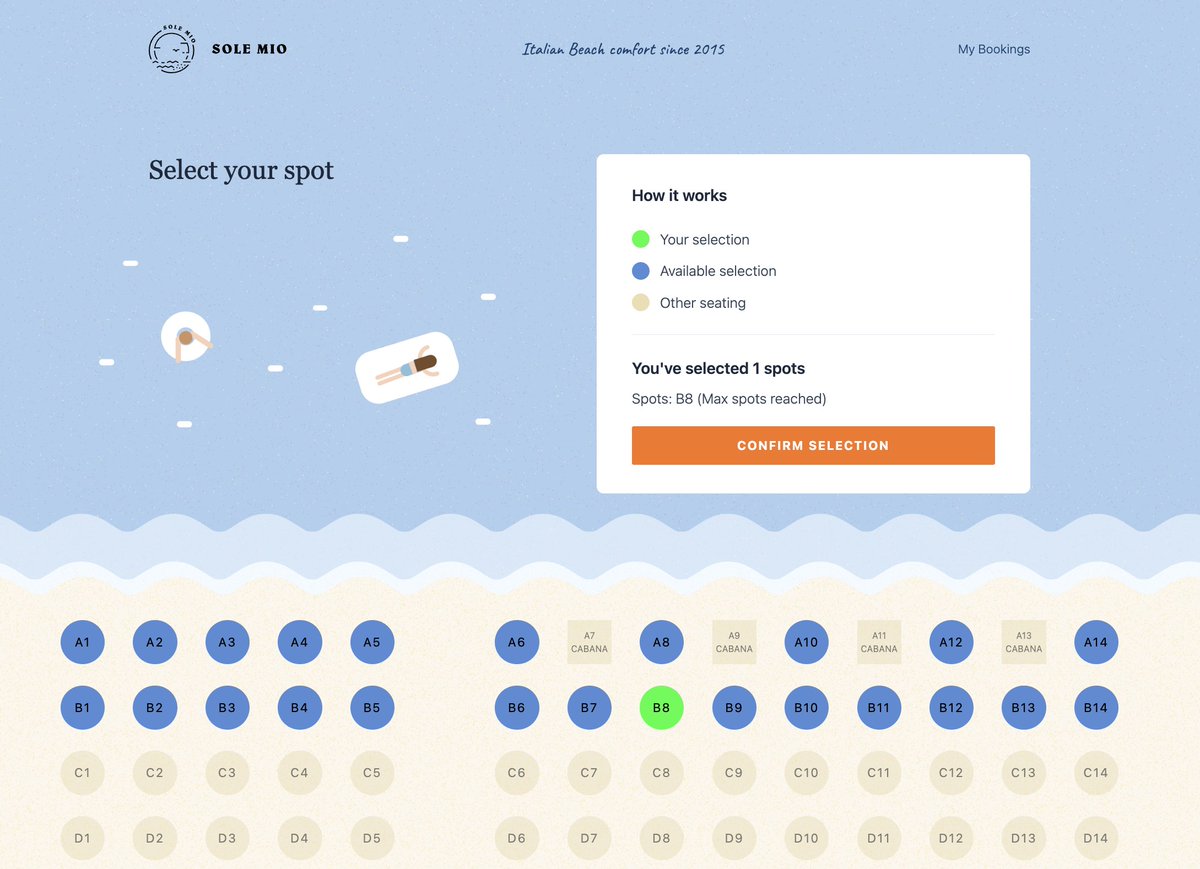

Ngl, I'm starting to respect airlines for building out their seat selection stuff It's not rocket science, but it's still fiddly Getting capacity, product type, availability, states, sync etc, to work perfectly together ... is interesting Now it's looking so fresh!

Sole Mio build update
Kumail
Kumail @kumailht · Oct 24, 2024

@MLCattaneo84 @teovito I really admire what you've built with Sole Mio! I agree with Marco, the leadership stuff trickles down to a happy customer.

Kumail
Kumail @kumailht · Nov 14, 2024

The booking platform for Sole Mio (@teovito) is coming along amazingly! I'm loving how smooth the booking+spot selection process is. Still some kinks to sort out, but it's very close to production quality.

Kumail
Kumail @kumailht · Nov 14, 2024

Done today: - Optimized the website for mobile use - Added a footer - Improved the booking page & login page - Fix minor bugs Next up: - Sending emails to the customer upon booking completion - Maybe auto-login user after payment - Admin system

Kumail
Kumail @kumailht · Dec 28, 2024

What a year it's been. I built all this in 12 months 👇 (Sole Mio made the cut — pulled from the year-in-review reel)

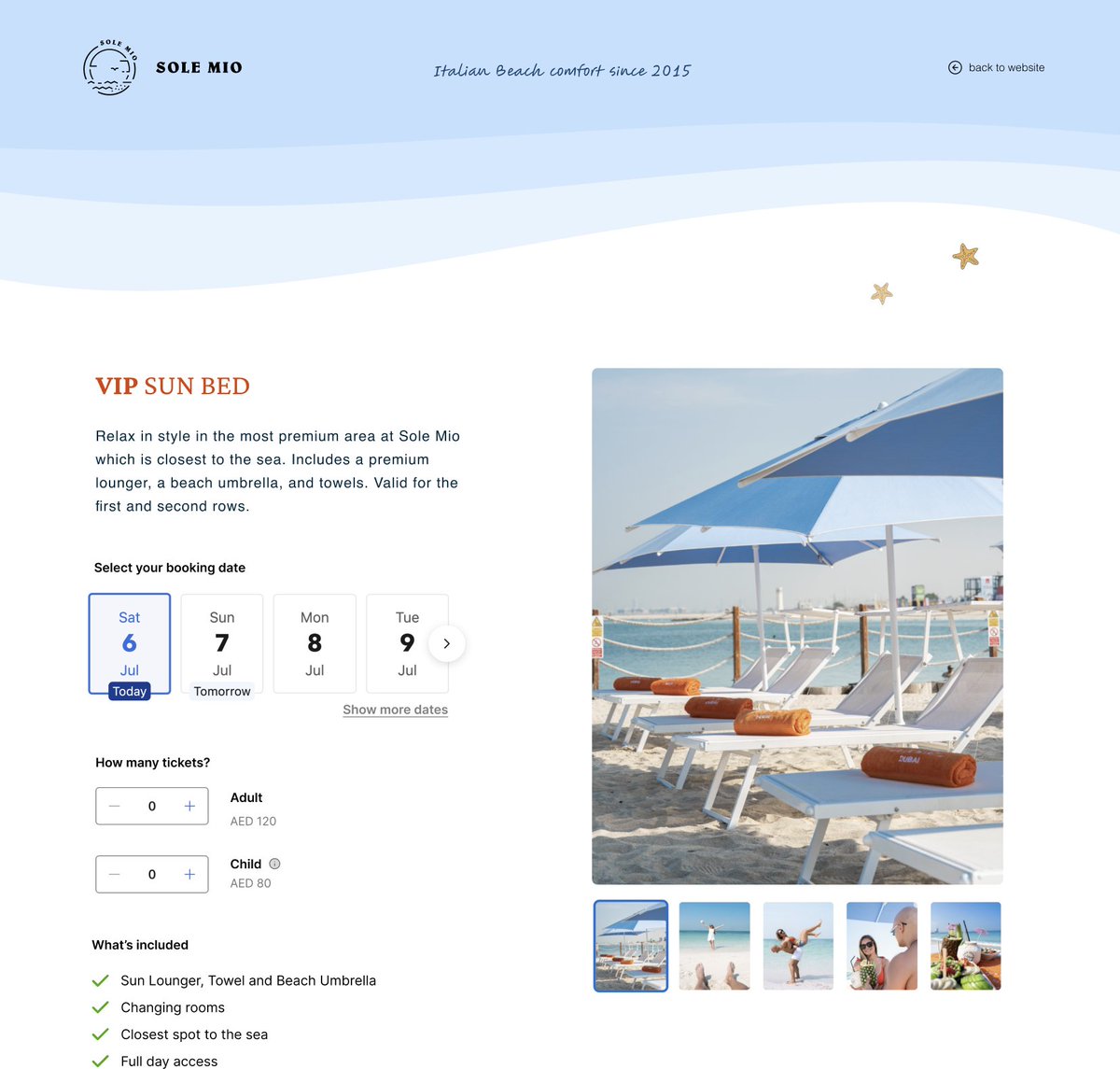

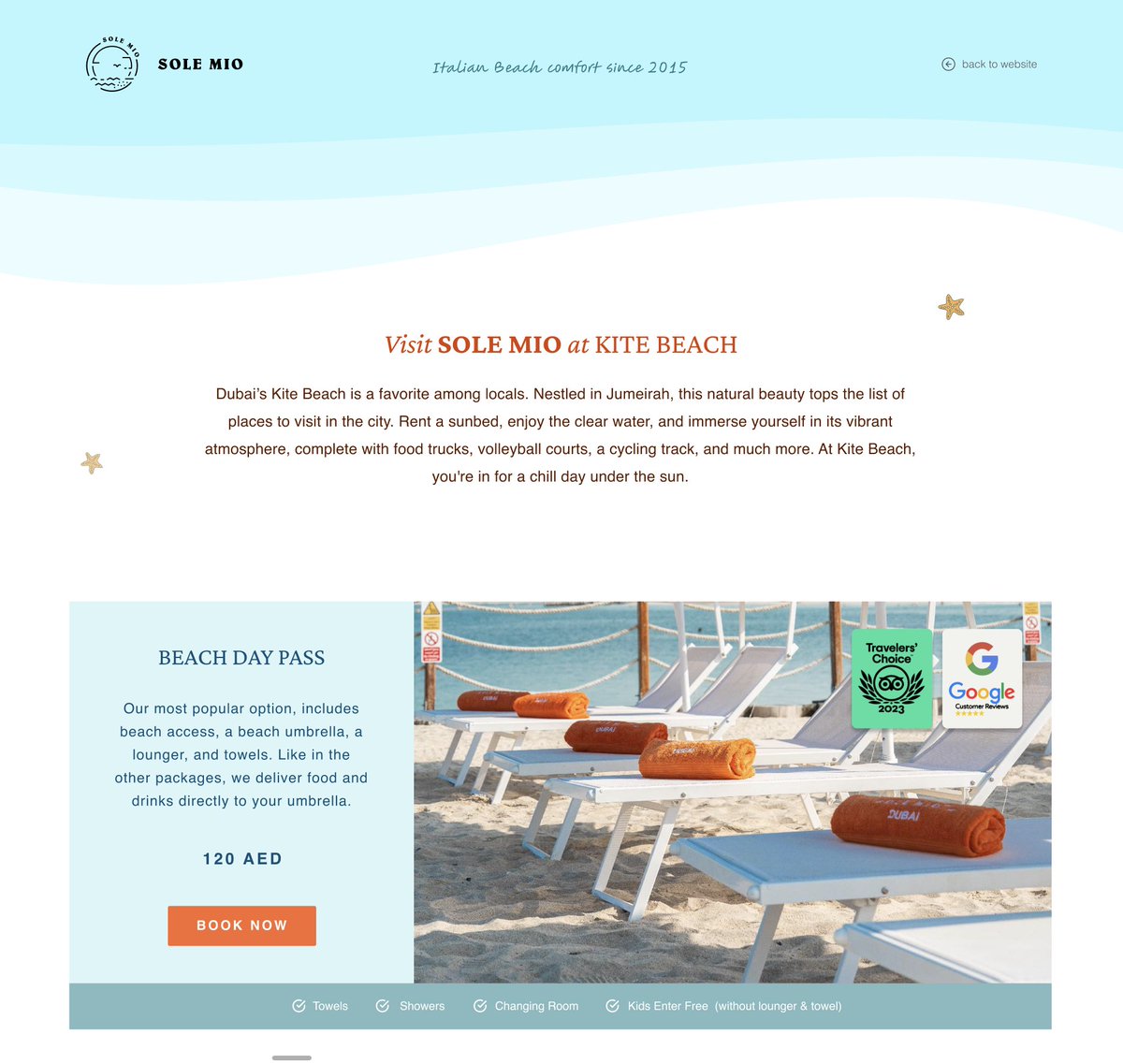

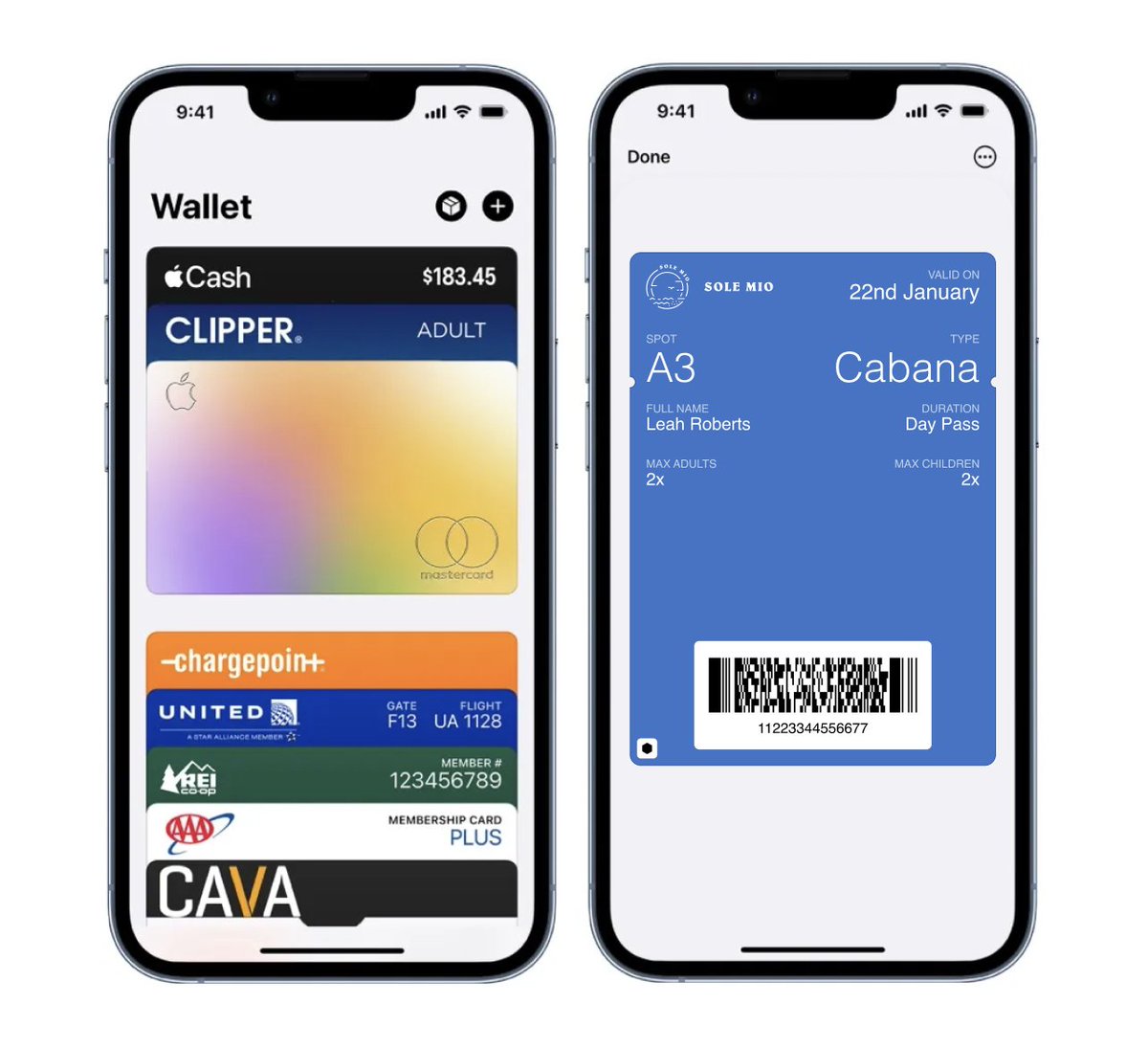

Sole Mio live site Sole Mio spot selector Sole Mio Apple Wallet pass Sole Mio VIP sun bed booking page
8 WEEKS LATER
Kumail
Kumail @kumailht · Jan 11, 2025

The dashboard shown here is for a booking and payments platform I'm building for Sole Mio. It's been months in the making and we're launching soon. To hear about how it goes, give me a follow :)

Kumail
Kumail @kumailht · Jan 18, 2025

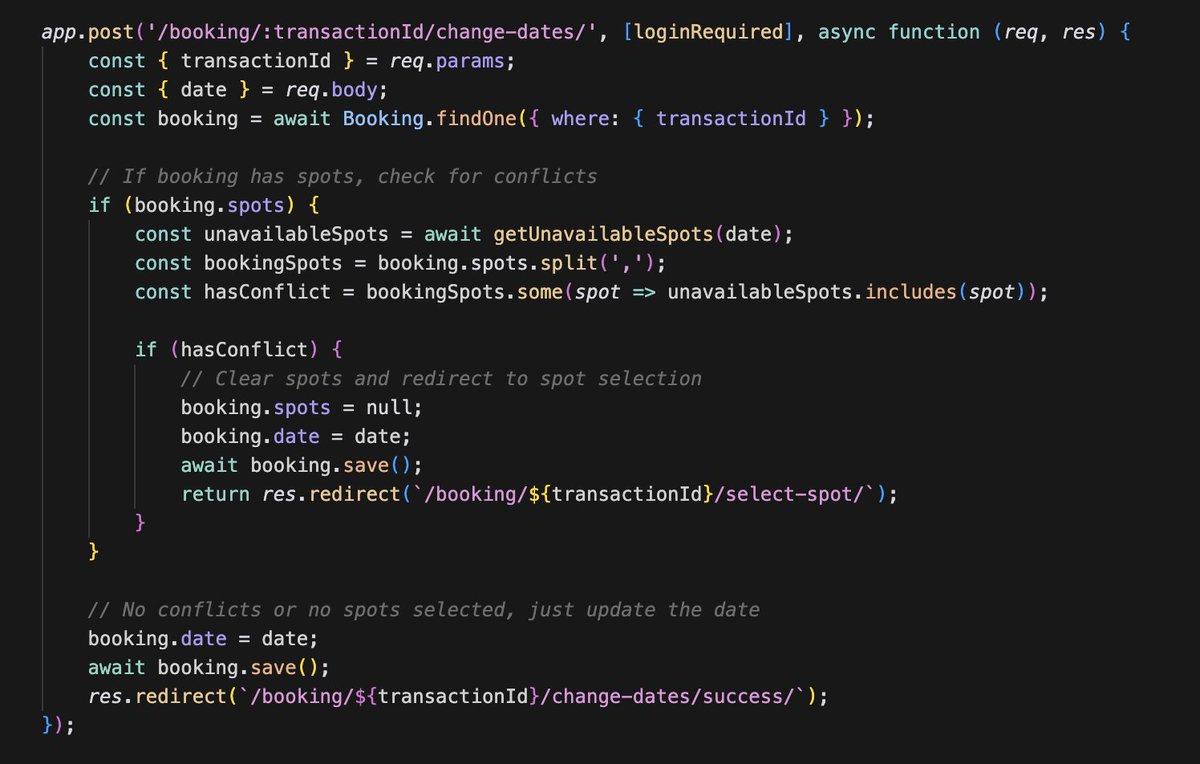

It's solving for dozens of edge cases like this that takes so much time When changing the booking date, we have re-book to spot if it's unavailable for the new date I missed this initially, and when working on large apps, it's the details that make it "production ready"

Sole Mio build update Sole Mio build update
Kumail
Kumail @kumailht · Jan 18, 2025

And yes, still need to refactor the code to be a bit cleaner, but my goal is always: 1. Get it working 2. Make it work well

Kumail
Kumail @kumailht · Jan 18, 2025

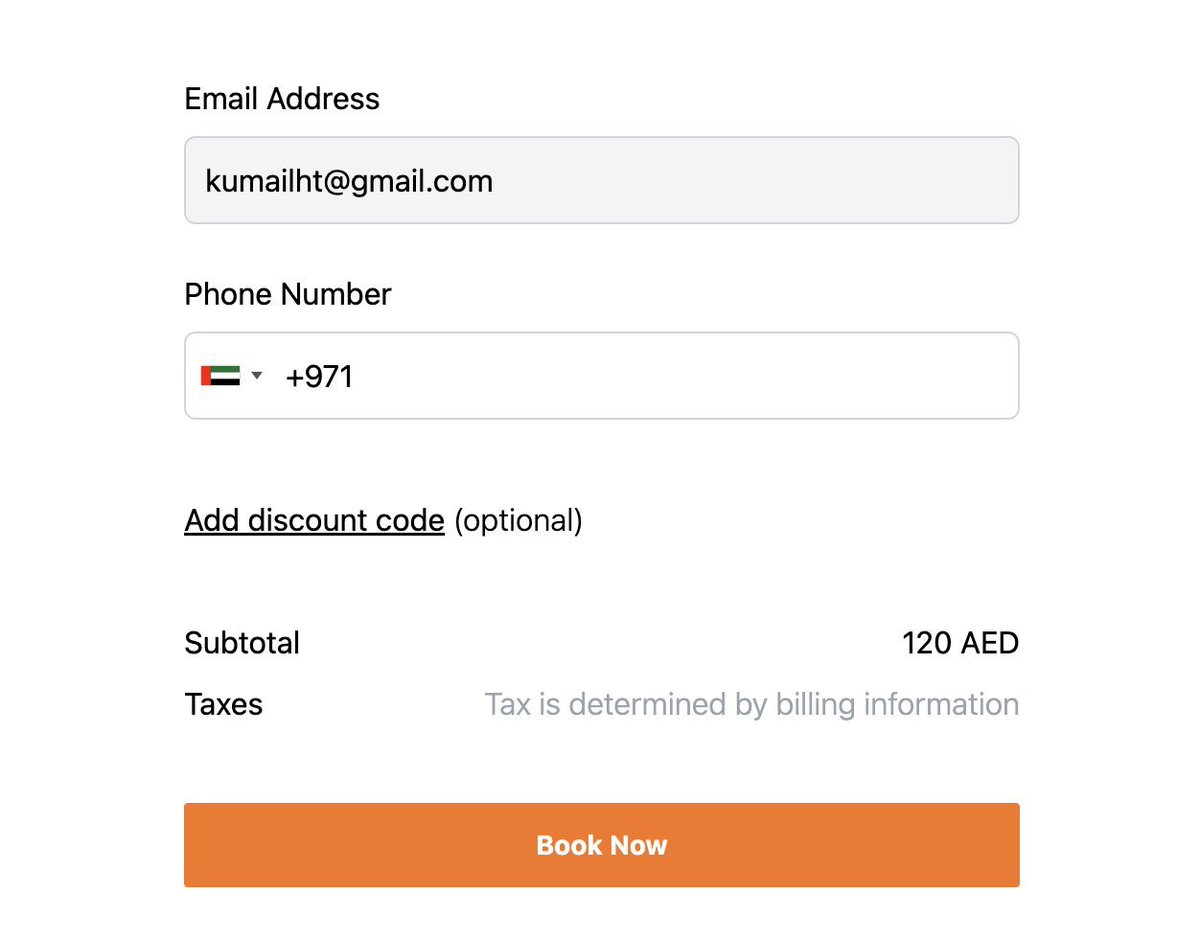

Another example is showing an icon for the phone number field It helps the user know they've filled this out correctly

Sole Mio build update
Kumail
Kumail @kumailht · Jan 18, 2025

I made booking codes just 6 digits so they are easy to remember for humans But long enough to not conflict with other bookings

Sole Mio build update
Kumail
Kumail @kumailht · Feb 3, 2025

I've been working towards launching multiple client projects this month. One of them is SoleMio. Since the project has real financial consequences and requires a lot of attention to detail, we'll be slowly rolling it out. A little about the tech stack I'll be using:

Kumail
Kumail @kumailht · Feb 3, 2025

The Production setup looks like this: - Node - Tailwind - Railway - Supabase - Postmark - ReCaptcha - Stripe for Payments - Custom Auth, Admin, Payments flow, Booking management & more

Kumail
Kumail @kumailht · Feb 3, 2025

This project has been months in the making! It's been so much work, but it's looking great now and was worth it. I think SoleMio customers will love it. For builds this complex, you can't just throw it into production. Too much is at risk. Millions in revenue, reputation, etc

Kumail
Kumail @kumailht · Feb 3, 2025

The launch plan is: 1. Take to staging 2. Test internally for 1-2 weeks 3. Roll out just one product to production 4. Test in production for 2-3 weeks 5. Roll out the rest of the products 6. Continue to test/fix bugs/etc The goal is to build confidence in the system over time

Kumail
Kumail @kumailht · Feb 3, 2025

Follow along to learn how I work on multiple high consequence builds myself and take them into production. Will be sharing 2 more projects in the coming weeks.
